714MST and 714MSRT - Monitor 15" Screen
 Feature
Resistive Touch
15" TFT LCD Monitor TouchScreen with VGA input
Serial TouchScreen ELO 4-wires Resistive
Including Monitor Stand

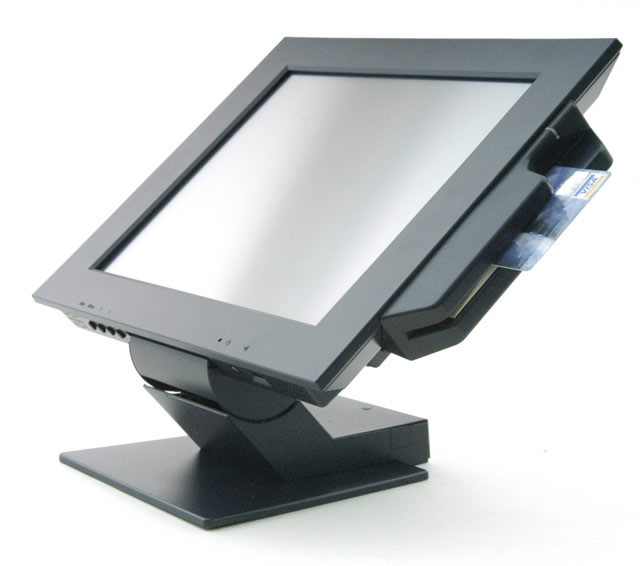

POS version with Card Reader Availlable as 714MSRT
| 714MST and 714MSRT SPECIFICATIONS |
| Model |
714MST
Black
w/ELO 5 wire resistive touch, serial port |
| Model |
714MSRT Black
w/Credit card reader
w/ELO 5 wire resistive touch, serial port |
| LCD Display |
15" diagonal |
| Pixel Pitch |
0.297 mm x 0.297 mm |
| Max. Resolution |
XGA 1024 x 768 |
| Contrast Ratio |
500 : 1 (Typical) |
| Brightness |
250 cd/m2 (Typical) |
| Display Colors |
16.2M(dithering) |
| Viewing Angle |
+70° ~ -70°(L/R), +60° ~ -65°(U/D) (Typical) |
| Video Signal |
0.7V Peak-to-Peak Analog R.G.B. |
| Sync |
TTL Positive or Negative |
| Input Connector |
15 Pin D-sub Analog R.G.B. and PS2 keyboard |
| User Controls |
On/Off, Menu Controls: Auto-Adjustment, Contrast, Brightness, Phase, Color Temperature |
| Power Supply |
Input: 90-240V, 50-60Hz, 1.0A
Output: 12V, 2.9A, 35W Inner Post (+), Outer Ring (-) |
| User Controls |
On/Off, Menu Controls: Auto-Adjustment, Contrast, Brightness, Phase, Color Temperature |
| Dimension |
355.5 x 329 x 162 mm (8 Kg) |
|
 |
|
|
|
Order Information
714MST - 15" 1024x768 Black Elo Resistive touch, Serial port
714MSRT - 15" 1024x768 Black w/Card Reader, Elo Resistive touch, Serial port
|
|
|
|
|
| © Copyright IBT Technologies Inc., 2010 - All Rights Reserved |
* Information are subject to change without notice, Engineering specs may differ slightly.
* Parts number may differ from ordering information. |
|
