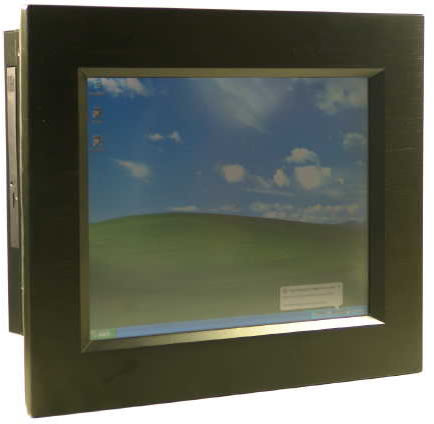

FD42L02 - 10.4" NEMA 4 Panel PC
Feature
  • low power 1.5GHz
  • Touch screen
  • support 1GB RAM
  • 2 x LAN, VGA, 8 x USB , 6 x COM CF slot, PCI slot, CD-RW, 2 x Speakers
  • PS/2 KB and PS/2 Mouse, Printer
  •

    IBT1084 SPECIFICATIONS
    CPU VIA 1.5GHz high speed and low power mobile processor for long-term running without over-heat problem.
    LCD Panel 10.4" color TFT, , there are three different LCD panels for selection :
    a) Standard : 640 x 480 at 400 cd/m2
    b) SVGA resol. : 800 x 600 at 200 cd/m2
    c) Sun-viewable : 800 x 600 at 1000 cd/m2
    No. of Colors : 262,144 colors
    Housing Made by 1.2mm rugged steel metal sheet.
    Video chipset : VIA CN700 integrated S3 high speed Graphic engine supporting 2D / 3D high speed video and graphics acceleration.
    Speakers / Audio: Built in 2 x speakers. Realtek ALC655 AC97 codec supporting 5.1 channel audio sound
    Memory (system) : Support high speed DDR RAM up to 1GB .
    LAN (Ethernet) Network There are 2 x LAN ports supporting 10 / 100 Mbps networking ability.
    Support LAN boot function It can support PXE LAN boot function.
    Compact Flash (CF) slot 1 x Compact Flash slot for CF card expansion
    DOM Flash Disk slot 1 IDE port for industrial-grade DOM Flash Disk slot
    PCI slot There is one PCI slot for expansion.
    HDD Slim size anti-vibration anti-shock 40 or 80GB HDD.
    CD-ROM (optional) This is an optional slim size CD-ROM
    Serial ports There are 6 serial ports (COM) in total. 5 COM ports will be exposed at the I/O area. 1 x COM port is reserved inside for touch screen application. Of the 6 x COM ports, COM2 and COM4 support RS485 / 422 / 232. The other 4 x COMs support RS232 only.
    USB There are 8 x USB 2.0 ports in total. There are 6 x USB exposed at the I/O area. 2 x USB are reserved for touch screen control inside the enclosure.
    LPT / Parallel Port This Printer port support printer interface.
    Keyboard / Mouse port 1 x PS/2 mouse and 1 x PS/2 keyboard port at the I/O area

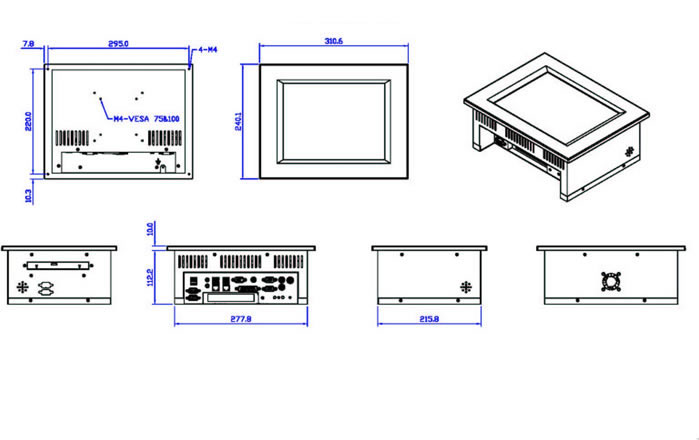

    Wall-mount : Meet VESA-75, 100 wall mount standard.
    VESA-75 wall-mount kit is available for extra cost.
    IP-65,66,67,68 & NEMA-4 rating Meet IP-65, 66, 67, 68 and NEMA-4 100% water proof ratings at front.
    Operating Temperature -20 degree C to +50 degree C
    Vibration Resistance Meet IEC-60068 standard. 5 – 500 Hz at 2G random vibration life test under Windows XP operation.
    Shock Resistance Meet IEC-60068 shock life test at 15G acceleration for 11 msec duration under Windows XP operation
    Power Supply Universal power supply supporting all AC 110 – 240V.
    DC power supply is available for your options for extra cost.
    Meet CE, FCC, UL, RoHS approvals
    DIO channel (option) There are 8 Digital Input and output channels are available for your selection with extra cost. Minimum order is 5 units.
    Aluminum bezel Ultra thick solid aluminum bezel for 100% water proof front face
    Touch Screen This is an optional 5-Wire Resistive touch screen. Resolution is up to 4096 x 4096 resolution. Capacitive Touch is also available.
    Industrial grade quality This is an industrial grade main board.



    Order Information
    IBT1084 - 10.4" Panel PC, low power 1.5GHz , Touch, support 1GB RAM, 2 x LAN, VGA, 8 x USB , 6 x COM, CF slot, PCI slot, CD-RW, 2 x Speakers, PS/2 KB and PS/2 Mouse, Printer
