IBT-3210TSF Industrial Fanless Panel PC
Feature
Ultra slim, fanless, aluminum front panel design
10.4" TFT color panel display
Built-in mainboard, 60W power adapter
Provides Intel® Pentium® M/Celeron® M processor 1.3~1.8GHz
or ULV Intel® Celeron® M processor 600MHz/512K (optional)
Provides Heavy Duty touch screen, dimmer controller(optional), wireless LAN module (optional)
Onboard graphics, dual ethernet, audio with 2W stereo AMP and speakerr
CF, COM/SERIAL, 2 USB2.0
2.5" HDD space x 1
3-key screen control
NEMA4/IP65 front chassies
| IBT-3210TSF SPECIFICATIONS |
| Processing |
|
| CPU |
Intel™ Pentium™ M/Celeron™ M processor 1.3~1.8GHz
ULV Intel™ Celeron™ M processor 600MHz/512K
Intel™ Pentium™ M processor 760 2.0GHz
Intel™ Pentium™ M processor 745 1.8GHz
Intel™ Celeron™ M processor 370 1.5GHz
Intel™ Celeron™ M processor 320 1.3GHz
M version provides ULV Intel™ Celeron™ M processor 600MHz/512K |
| Memory |
One SO-DDR socket supports up to 1GB |
| Chipset |
Intel™ 852GME/ICH4 |
| Touch Screen |
10.4" resistive RTS(5mm) or SAW(6mm) touch screen (optional) |
| Dimmer Controller |
3-key Dimmer controller (optional) |
| Display |
Onboard graphics controller |
| Ethernet |
Onboard dual 10/100 Based LAN controller |
| Wireless LAN |
Provides wireless LAN module (optional) |
| Audio |
Onboard 3D audio with 2W stereo AMP |
| Storage |
Type I/II CF adapter x 1
2.5" HDD IDE space x 1 |
| Serial Port |
1 port |
| USB |
USB2.0 port x 2 |
| Keyboard/Mouse |
PS/2 6-pin Mini DIN |
| BIOS |
AMI PnP Flash BIOS |
| Watchdog Timer |
Software programmable time-out intervals from 1~255 sec. |
| LCD Panel |
|
| Screen Size: |
10.4 inches |
| Display Format: |
800 x 600 pixels |
| Pixel Pitch: |
0.264(H) x 0.264(V) m/m |
| Brightness: |
250 cd/m2 |
| MTBF |
15,000 hrs. |
| Environnement |
|
| Operation Temperature |
0 – 45°C |
| Storage Temperature |
-20C – 70°C |
| Relative Humidity |
10% -- 90% @50C, non-condensing |
| |
|
| Front Panel Protection |
NEMA4 / IP65 (Resistive touch only) |
| Power Input |
60W power adapter or isolate DC power in |
| Consumption |
18 watt (max.), < 3 watt (stand by mode) |
| |
|
| EMC |
CE, FCC |

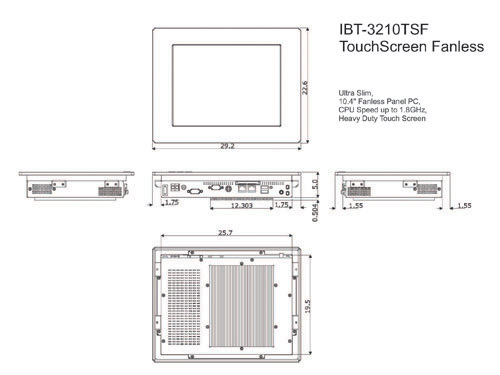

| Dimensions |
29.2(L) x 22.6(H) x 5.504(W) cm : |
| Weight |
4.2kgs |
 |
Other info to specify or Options:
CPU speed
Memory size
CF size Module
Wireless LAN Module
2.5" HDD stand
HDD size
TouchScreen type
Perfect Accessories and Options:
WM-ELSJ07 - Wall mount 13" to 27" Pivot Arm LCD Mount
|
Order Information
IBT3210 TSF (R) 10" Panel PC w/TFT Panel, Heavy Duty
Resistive Touch Screen(5mm), w/HeatSink, 60W Power Adapter
IBT3210 TSF (S) 10" Panel PC w/TFT Panel, Heavy Duty
SAW Touch Screen(6mm), w/HeatSink, 60W Power Adapter
IBT3210TSF-M will provides ULV Intel® Celeron® M processor 600MHz/512K |
|
|
|
|
|
