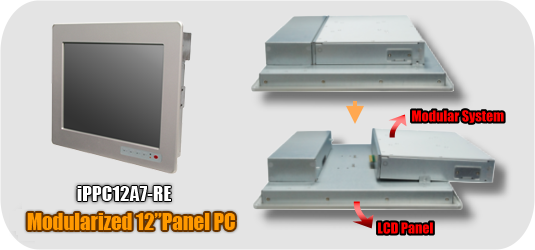

IPPC1200 Panel PC System - Fanless Modularized 12" Industrial Panel PC
  • Dual-Core Intel® Atom™ Processor D2700
  • DDR3-1066 memory support, up to 4GB
  • 2M battery backup SRAM
  • Software based OSD function control
  • IP65 front panel protection
  • Resistive pouch panel (optional capacitive or SAW)
  • 1x PCI expansion slot

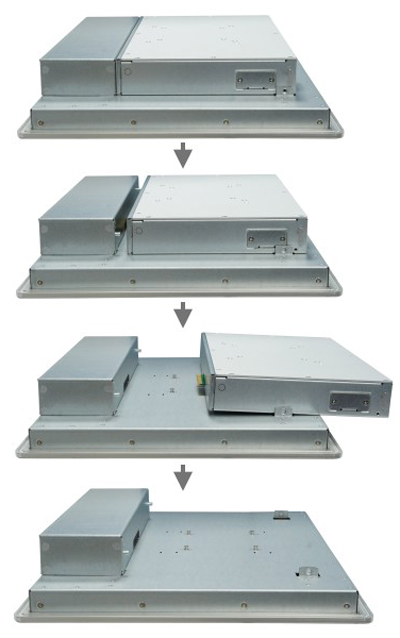

  • Slim & compact design
    Mainboard IB806
    CPU Type Onboard Intel® Atom™ Processor D2550(1M Cache, 1.86GHz)
    Memory 1033 /1066 DDR3 up to 4G
    Construction Aluminum & SGCC (Silver)

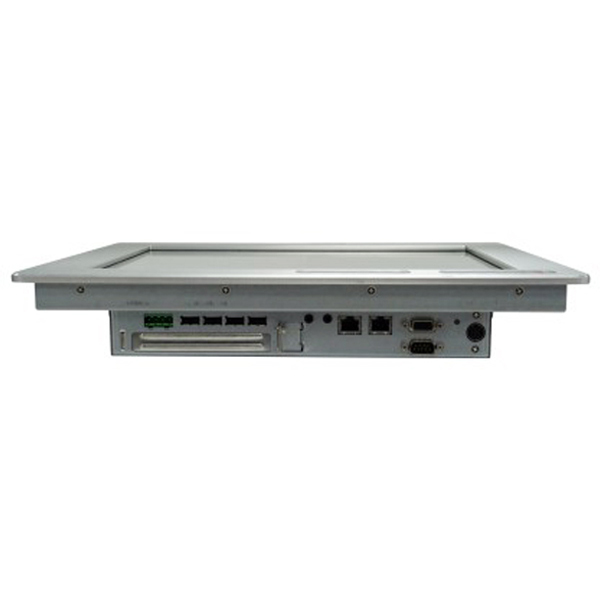

    I/O Interfaces 2x Gigabit LAN (RJ45)
    1x 10/100 LAN (RJ45)
    4x USB 2.0 (USB Host. A-Type)
    COM1 RS-232/422/485
    1x12V DC-in
    1x VGA
    1x speaker-out microjack
    1x Mic-in microjack
    2x SMA connector (reserve for mini PCIE module Supporting WiFi / Bluetooth / HSDPA)
    Expansion I/O
    1 x PCI Slot
    Storage 1x2.5 inch HDD
    Mounting VESA mount (100mmX100mm)
    Dimensions 320mm(W) x 270mm(H) x 33.5mm(D)
    Audio ICH7M Built-in Audio controller + AC97 Codec ALC 655 5.1 channels (Line-out, Line-in, Mic.)
    LPC I/O W83627EHF: COM1, COM2 (RS232), IrDA x1 & Hardware monitor (3 thermal inputs, 4 voltage monitor inputs, 1 Fan Headers)
    Thermal Solution 4cm ball bearing cooling fan x 2
    Keyboard/Mouse Supports PS/2 Keyboard/Mouse
    Expansion Slots Mini PCI slot
    Power Supply +12V DC-in, 84W power adaptor
    LCD Size 12.0¨ TFT LCD
    LCD Color 16.7M colors
    Touch Screen Resistive Touch Panel
    Display Resolution SXGA 1024x768
    LCD Brightness 500 cd/cm2
    Dot Pitch 0.240mm x 0.2407mm
    Viewing Angle 160/160
    Backlight MTBF 50,000 hrs
    Operation Temperature 0 – 45°C
    Storage Temperature -10C – 60°C
    Relative Humidity 10% -- 90% @50C, non-condensing
    Protection Class IP65 (Front panel with wall mount)

    Order Information

    iPPC-1200 12" Modularized Panel PC with IB806, Intel® Atom™ D2700 2.13GHz, with 2GB DDR3 1333,160GB HDD and resistive touch
