IPPC1700 Panel PC System
Feature
17" Panel PC with MI953AF Mini-ITX Motherboard
Supports Resistive/Capacitive/SAW touch
2x DDR3 SO-DIMM memory socket, up to 8GB
17" TFT resistive-touch LCD with 16.7M color support
2x PCI expansion slot (iPPC-1700E)

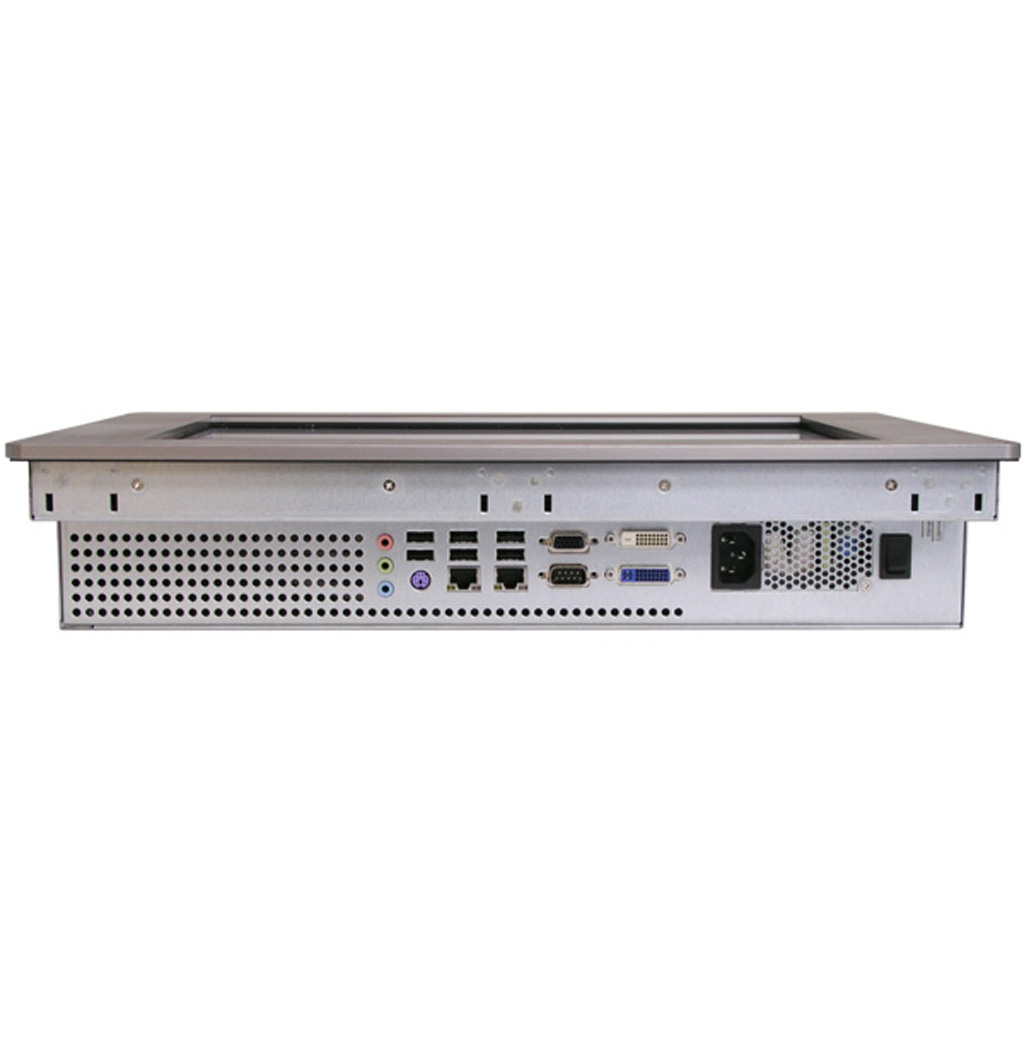

I/O for PS/2, dual USB, HD audio, 2x COM, GbE
1x DVD-ROM (optional)
| IPPC1700 SPECIFICATIONS |
| Mainboard |
MI953AF |
| CPU Type |
Socket G1 (rPGA 989) forIntel© Core® i7 / Core® i5 processors |
| Memory |
2x DDR3 1066MHz SO-DIMM, Max. 8GB |
| Construction |
Steel (SGCC) |
| I/O Interfaces |
1x PS2 KB/MS,
6x USB2.0,
1x COM port,
2x Gigabit LAN,
1x DVI-I,
1x DVI-D,
1x VGA CRT
1x RCAx3 for HD audio,
2 x DB9 for COM3~4
1 x 10-pin Mini-DIN for GPIO |
Expansion I/O
(iPPC-1700E) |
2x PCI Slot |
| Storage |
Slim SATA Combo DVD (optional) /
2.5 inch HDD (optional) |
| Mounting |
VESA mount (100mmX100mm) Panel mount, Rack mount (optional) |
| Dimensions |
442mm(W) x 362mm(D) x 110mm(H) |
| Audio |
ICH7M Built-in Audio controller + AC97 Codec ALC 655 5.1 channels (Line-out, Line-in, Mic.) |
| LPC I/O |
W83627EHF: COM1, COM2 (RS232), IrDA x1 & Hardware monitor (3 thermal inputs, 4 voltage monitor inputs, 1 Fan Headers) |
| Thermal Solution |
4cm ball bearing cooling fan x 2 |
| Keyboard/Mouse |
Supports PS/2 Keyboard/Mouse |
| Expansion Slots |
Mini PCI slot |
| Display |
|
| LCD Size |
17.0¨ TFT LCD |
| LCD Color |
16.7M colors |
| Backlight |
CCFL |
| Display Resolution |
SXGA 1280x1024 |
| LCD Brightness |
380 cd/cm2 |
| Dot Pitch |
0.264mm x 0.264mm |
| Viewing Angle |
160/160 |
| Backlight MTBF |
50,000 hrs |
| Touch Screen |
Resistive Touch Panel |
| Environnement |
|
| Operation Temperature |
0 – 40°C |
| Storage Temperature |
-10C – 60°C |
| Relative Humidity |
10% -- 90% @50C, non-condensing |
 |
Order Information
iPPC-1700TR 17¨ Panel PC with MI953AF, Socket G1 for Intel© Core® i7/i5 CPU, 2x DDR3 SO-DIMM, Resistive Touch |
|
|
|
|
|
