KIOSK IPPC22K 22 Inch with Touch Screen (Standless steel)

Overview

Measurement

Specifications

Computer

Ordering

Overview

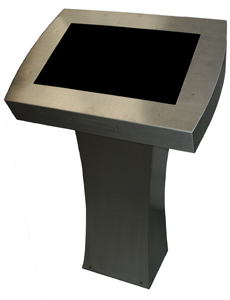

IBT IPPC22K

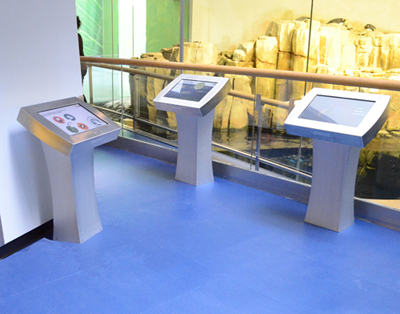

Presented as piedestral IP65 version full stainless steel as reference from previous project.

General Features:
  • All steel chassis
  • 22 Inch Screen with I/R Touch Display 3D

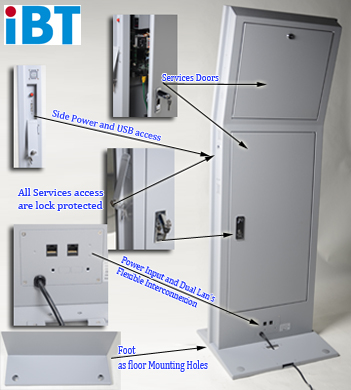

  • Protected Technician Power and Usb access
  • Easy service access
    		•

    Measurements
    IBT KIOSK PC

    Measurements Specifications:

    Total height:
    T.B.A.
    Total width:
    T.B.A.
     Total Deept:
    T.B.A.
     Screen parts:
    15 degrees angle
    22 Inch (1280 x 1024, 350 nits)

    Specifications
    IBT KIOSK PC

    Specifications:

    Servicability:
    Head and Foot detachable

    Technician access:
    Ddoor protected with a lock, access to Power Switch and USB connectors

    External Connector:
    Two lans access over RJ45 connectors RS232, USB,

    Floor Installation:
    Mounting foot plate with screwing holes.

    Computer Specifications
    IBT KIOSK PC

    Computer Specifications:

    Mainboard:
    MI945X - Intel™ Core2 Duo
    MB8100 - Intel™ Atom™

    Processor:
    Intel™ Core™2 Duo 2.26 GHz

    Memory:
    2.0 GB DDR3

    Storage:
    250 GB HDD

    Display:
    22 Inch (1280 x 1024, 350 nits)

    Power Supply:
    AC 110 / 220 Volts; 90 Watts

    Ordering Information
    IBT KIOSK PC

    Black, 17Inch Piedestral Panel Display with SAW TouchScreen, Camera, Mic, Card reader, Computer ready to run.

    Options:

  • Slim optical drive
  • Wifi Network
  • USB Camera with Microphone
  • MSR (Magnetic Card Reader)
  • Reciept POS printer
  • Operating System (Microsoft POS 2009)
    		•
