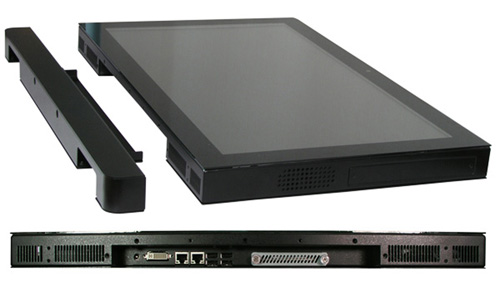

SPPC2200 Digital Signage System
Feature
21.5" Display with w/ IB889 3.5" Disk Size SBC
AMD Neo™ Processor
Removable 2.5 Disk SATA tray
Slim design (40 mm thick)
Optional I/O protection cover
Touch window & CCD for interactive function (for OEM/ODM)
| IPPC1700 SPECIFICATIONS |
| Mainboard |
IB889 |
| CPU Type |
AMD Turion™ II Neo N54H processor on board (2.2GHz) |
| Memory |
2x DDR3 1066MHz SO-DIMM, Max. 4GB |
| Construction |
Steel (SGCC) |
| Video processor |
AMD 785E built-in Radeon HD4200 Graphics |
| I/O Interface |
1x DVI-I, 2x Gigabit LAN, 4x USB |
| Expansion I/O |
Mini PCI-E |
| Storage |
Removable 2.5 SATA HDD tray |
| Mounting |
VESA mount (100mmX100mm) Panel mount, Rack mount (optional) |
| Dimensions |
199mm(W) x 232mm(D) x 63.4mm(H) |
| Display |
|
| LCD Size |
21.5¨ TFT LCD |
| LCD Color |
16.7M colors |
| Backlight |
CCFL |
| Display Resolution |
1920x1080 16:9 Full HD |
| LCD Brightness |
250 cd/cm2 |
| Dot Pitch |
248.25 um x 248.25 um |
| Viewing Angle |
170/160 |
| Backlight MTBF |
30,000 hrs |
| Environnement |
|
| Operation Temperature |
0 – 40°C |
| Storage Temperature |
-10C – 60°C |
| Relative Humidity |
10% -- 90% @50C, non-condensing |
 |
Order Information
IPPC-2200 21.5' Panel PC with 2.2GHz AMD TurionTM II Neo N54L CPU, 2GB DDR3 SO-DIMM, 60W power adaptor
IPPC-2200/IOC sPPC-2200 IO protection cover
|
|
|
|
|
|
