IBT3319TSF - Fanless 19" Slim Panel PC
  • SBC+Intel Atom N270 processor 1.6GHz,
  • 12V DC adapter, Embedded CCD Camera* ,
  • Onboard graphics, GB ethernet, audio controller
  • 2 x 2.5" SATA HDD space, 1 x slim CD-ROM space
  • Provides 2W AMP with Stereo Speaker*

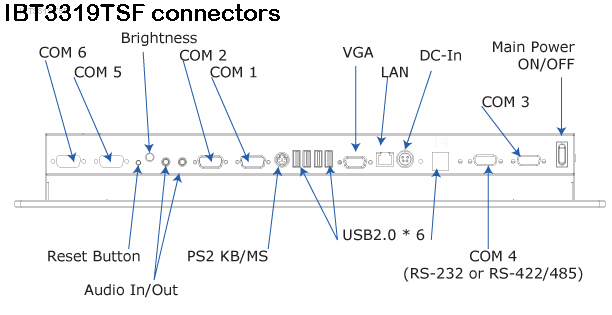

  • Provides CF, 1 X mini PCI, 6 x COM, 6 x USB2.0
  • COM1 and COM2 provides +5V power output
  • Wireless LAN module
    SBC (Single Board Compute) type 3.5 size
    CPU Intel Atom N270 processor 1.6GHz
    BIOS Award BIOS, support ACPI Function
    Chipset Intel 945GSE/ICH7-M
    Memory 1 x 200-pin SO-DIMM socket up to 2GB DDR2 SDRAM
    Display Chipset Intel 945GSE integrated Intel GMA950
    Audio Chipset RealTek ALC202A and 2W AMP with Stereo Speaker
    Ethernet Chipset RealTek RTL8111C 10/100/1000 Mbps LAN
    Wireless LAN Module (option)
    Drive Bay 2 x 2.5" SATA HDD space
    1 x Slim CD-ROM space
    Storage 1 x Type II CF socket
    Watchdog Timer Software programmable time-out intervals from 1~255 sec. or 1~255 min.
    Dimensions (LxHxW) 48.0 x 38.0 x 6.02 cm
    Cut Out Size (LxH) 43.4 x 34.9 cm
    Serial ATA Ports ICH7M built-in SATA controller, supports 1 ports
    LCD Size 19"
    Max Resolution 1280 x 1024 pixels
    Brightness (cd/m) 300 (center, Typ) @ 7.5mA
    Contrast Ratio 800:1
    LCD Color 16.7M colors
    Pixel Pitch (mm) 0.294 x 0.294
    Operation Temperature 0 – 50°C
    Storage Temperature -20C – 60°C
    Relative Humidity 10% -- 90% @50C, non-condensing
    Construction Aluminum front panel / metal chassis
    Color Front Bezel Black
    Power Input 90 – 240V AC (auto-Switch)
    Power Saving VESA DPMS standard (4 mode) Power
    Consumption 18 watt (max.), < 3 watt (stand by mode)
    Certifications CSA,FCC,UL,CE,CCC and BSMI
    Dimensions 402mm x 302mm x 80mm (15 x 11 x 3" )
      * Optionnal componants

    Order Information

    IBT3319TSF 19" Panel PC w/TFT Panel, Touch Screen Atom 1.6GHz CPU, 12V DC Adapter

    Wireless LAN Module, 2.5" SATA HDD, Slim CD-ROM, Memory Module, CF Module, CCD Camera, VESA Stand
    © Copyright IBT Technologies Inc., 2010 - All Rights Reserved * Information are subject to change without notice, Engineering specs may differ slightly.
    * Parts number may differ from ordering information.
