IBT5019T - 19" High Speed Panel PC
Feature
  • Aluminum front panel
  • 19" panel display
  • Built-in OSD key, mainboard,180W ATX power supply
  • Provides Heavy Duty touch screen, wireless LAN module (optional)
  • Onboard graphics, ethernet, audio controller (by M/B)
  • COM, USB (by M/B)
  • Standard PCI expansion slot x 1
  • 2.5" HDD space x 1, slim CD-ROM space x 1
  • 4cm ball bearing cooling fan x 3
    • IBT5019TS SPECIFICATIONS
    CPU Intel® Core™ 2 Duo processor T7100, T7250, T8100 or Celeron 550
    Memory Two SO-DDRII socket supports up to 4GB
    Chipset Intel® Q965 MCH/ICH8
    PCI Slot x16 PCI-E expansion slot x 1
    Touch Screen 19" resistive or SAW touch screen
    Display Onboard graphics controller, provides CRT and DVI display interface
    Ethernet Onboard dual 10/100/1000 Based controller
    Wireless LAN Provides wireless LAN module (optional)
    Audio onboard HDAC CODEC with ALC883.7+2CH 3D audio controller
    Storage 2.5" HDD space x 1
      Slim CD-ROM space x 1
    Serial Port 1 ports
    USB USB2.0 ports x 4 (optional for 8)
    Keyboard / Mouse port PS/2 6-pin Mini DIN
    BIOS Award BIOS with 4Mb Flash EEPROM
    Watchdog Timer Software programmable time-out intervals from 1~255 sec.
    Thermal Solution 4cm ball bearing cooling fan x 2
    Power Supply 300W power supply (450Watts Optional)
    Temperature 0~+45°C (operating); -20~+70°C (storage)

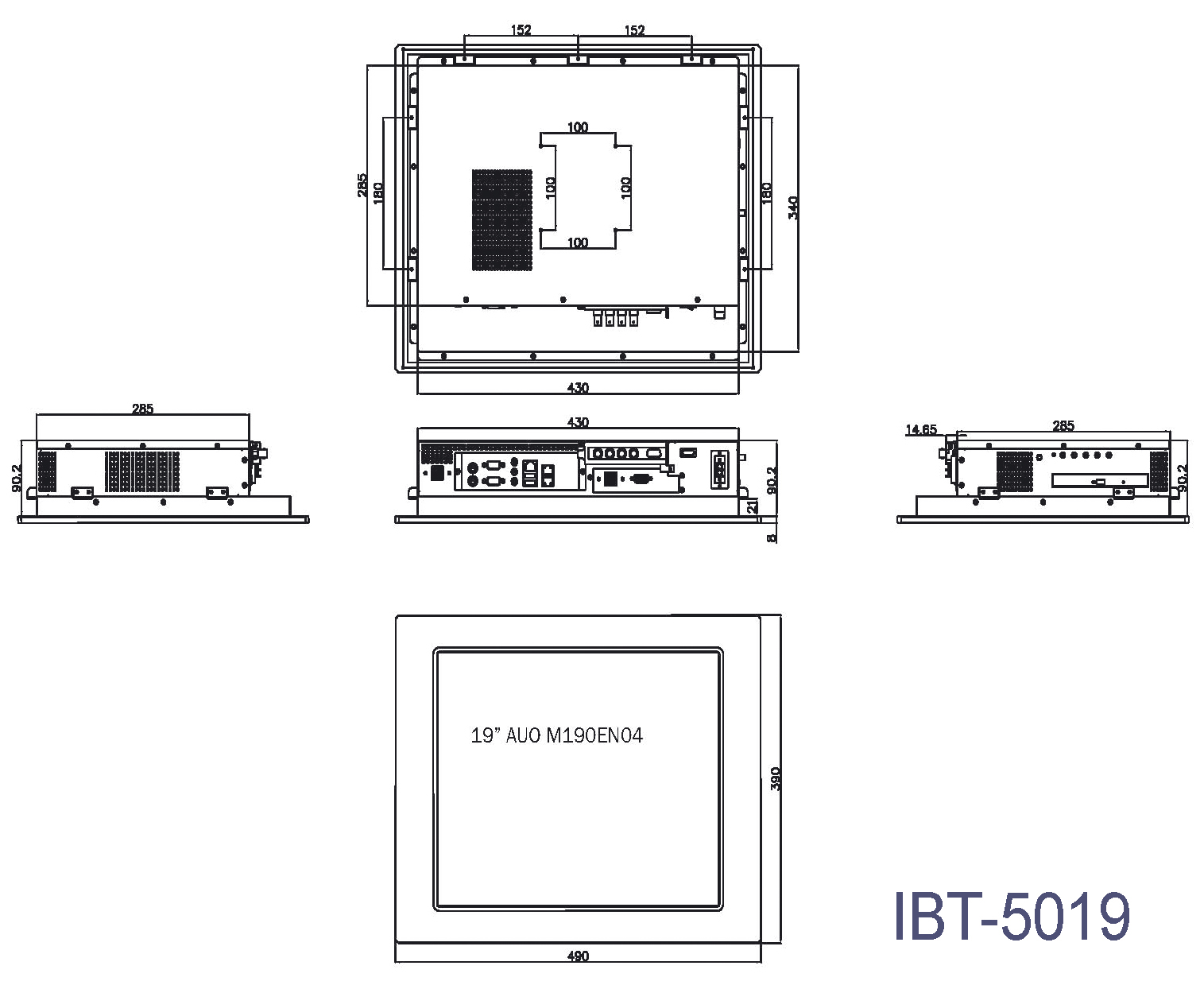

    Dimensions 49.0(L) x 9.82(H) x 39.0(W) cm


    		Panel Specifications
  • Active Screen Size: 376.32(H) x 301.06(V) mm
  • Pixels H x V: 1280(x3) x 1024
  • Pixel Pitch: 0.294(per one triad) x 0.294
  • Pixel Arrangement: R.G.B. Vertical Stripe
  • White Luminance: 300 cd/m² @ 7.5mA
  • Contrast Ratio: 800:1(typ)
  • Optical Response Time: 5 ms(typ, on/off)
  • Support Color: 16.7M colors (RGB 6-bit data + HiFRC data)
    		•

    Order Information
    IBT5019Q -- 19" Panel PC w/Intel T2050 processor, one PCI slot, TFT Panel, Touch Screen, PSU
    IBT5019T -16 - 19" Panel PC w/Intel T7100 1.6GHz processor, PCI-E slot, TFT Panel, Touch Screen, PSU
    IBT5019T-20 - 19" Panel PC w/Intel T7250 2.0GHz processor, PCI-E slot, TFT Panel, Touch Screen, PSU
    IBT5019T -21 - 19" Panel PC w/Intel T8100 2.1GHz processor, PCI-E slot, TFT Panel, Touch Screen, PSU

    Packing List:
    Options:
    Metal Stand, Memory size, 2.5" HDD, Slim CD-ROM, Wireless LAN Module
