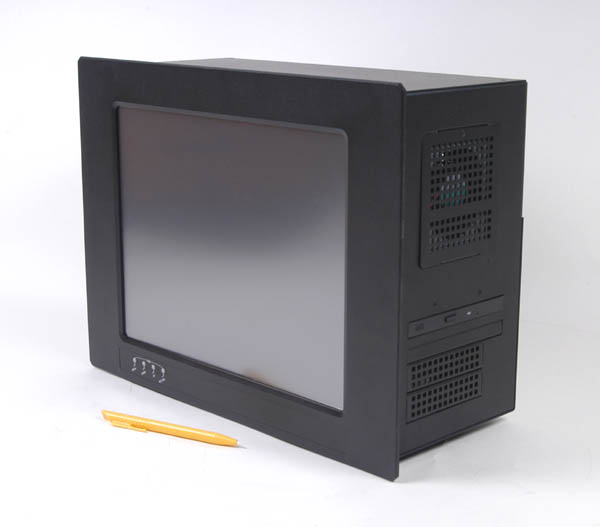

IBT6170 - 15" Industrial Panel PC
Feature
Aluminum front panel
15" high brightness TFT color panel display
Pentium 4 CPU / Celeron / Celeron D
OSD function
Built-in industrial full size SBC with backplane, 300W PS/2 power supply (Optional 450Watts)
CRT / Panel display controller
Speaker with 2W power amplifier
2x 3.5" HDD and 2x slim CD-ROM spaces
1x 8cm ball bearing cooling fans
USB 15" touch screen
| IBT6170 SPECIFICATIONS |
| CPU |
PGA 478 for Intel Pentium 4, Celeron D CPU up to 3.6GHz with Hyper-Threading Technology |
| Memory |
Two DDR sockets supporting up to 2GB (optional) |
| System Board |
Industrial full size SBC |
| Expansion Slots |
3 PCI, 2 ISA, 1 PICMG slot |
| OSD |
VGA to Panel mobule, supporting OSD function |
| Touch Screen |
15" resistive touch screen |
| VGA |
Onboard Intel display controller |
| LAN |
Onboard Intel 10/100 Based LAN |
| Wireless LAN |
One wireless LAN module |
| Audio |
AC97 3D audio controller with 2W power amplifier |
| HDD/FDD/CD-ROM |
One 3.5" HDD and one slim CD-ROM spaces |
| Serial Port |
4 ports |
| Parallel |
One enhanced bi-directional parallel port supporting SPP/ECP/EPP |
| USB |
Two USB connectors |
| Keyboard/Mouse |
PS/2 6-pin Mini DIN |
| BIOS |
Award PnP Flash BIOS |
| Watchdog Timer |
Once a problem is detected the system will reset the configurations and reboot the system after five seconds |
| Thermal Solution |
4cm ball bearing cooling fan x 2 |
| Power Supply |
300W power supply (450Watts Optional) |
| Temperature |
Operating: 0~50°C
Storage: -20~+60°C |
| Dimensions |
43.0 x 18.68 x 32.1cm |
|

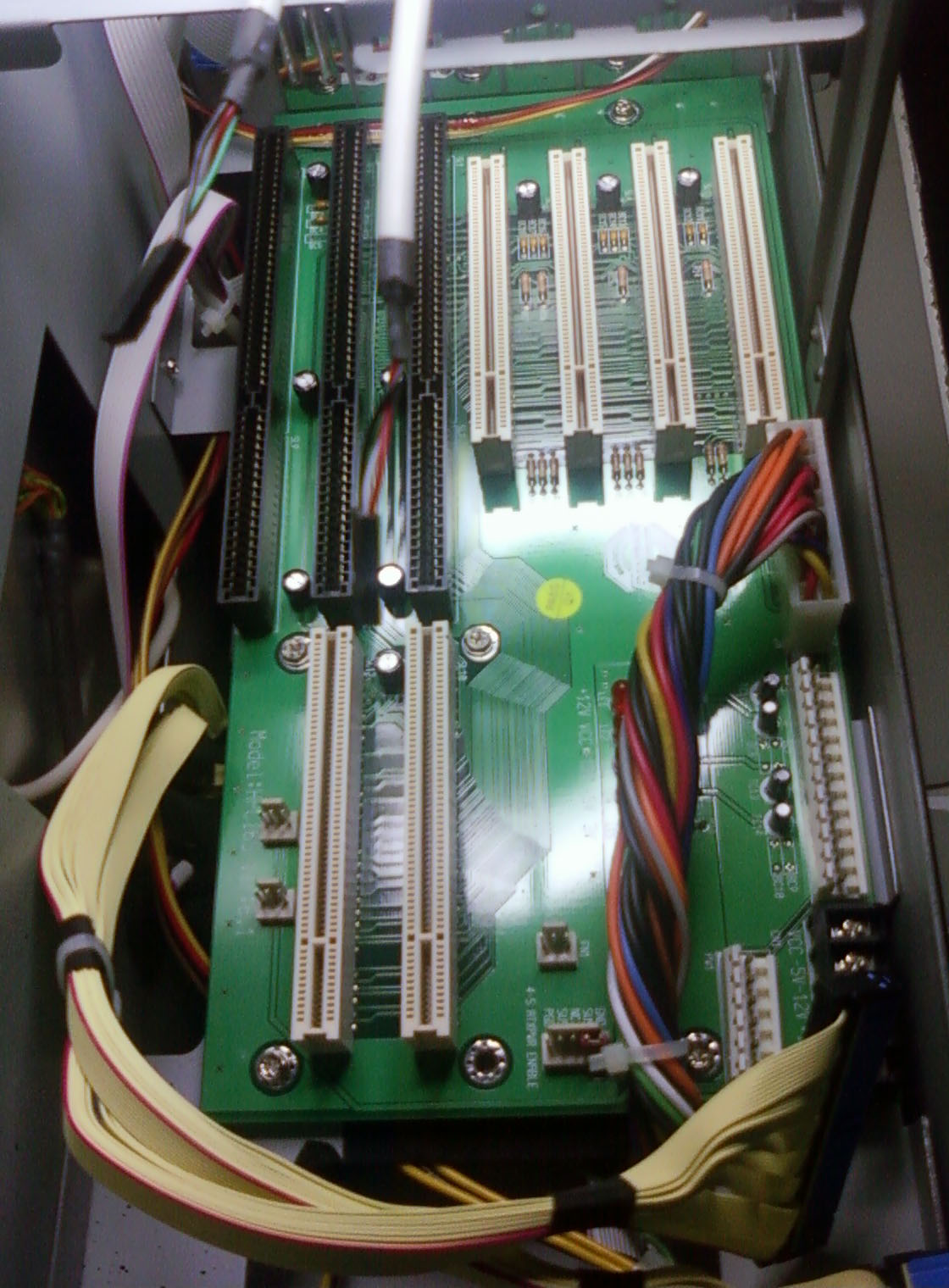

 Expansion Slots

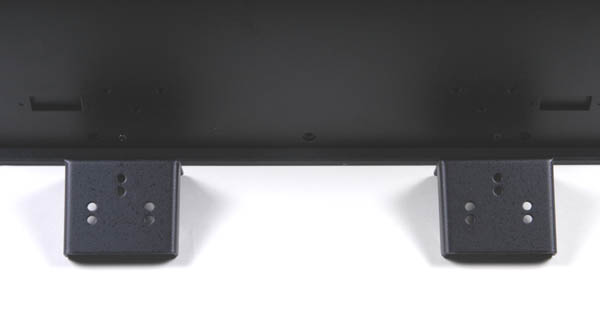

 Mounting brackets |
Processor board:
IB840 or IB840F (recommended)
Supports Pentium® 4 / Celeron® processors Up to 3.2GHz, 800MHz FSB
2x DDR DIMM, Max. 2GB
10/100/1000 Based LAN
Wireless LAN module(Optional)
Integrated VGA for CRT
MicroAGP socket supports AMD M9 / M10
64MB, LVDS/TV-out/TMDS cards
AC97 3D audio controller
4x COM, 1x parallel, 4x USB 2.0 connectors
2x SATA, ISA High Drive
Watchdog timer, DiskOnChip®
PCI to ISA bridge
|
|
Panel Specifications
Active Screen Size: 376.32(H) x 301.06(V) mm
Pixels H x V: 1280(x3) x 1024
Pixel Pitch: 0.294(per one triad) x 0.294
Pixel Arrangement: R.G.B. Vertical Stripe
White Luminance: 300 cd/m² @ 7.5mA
Contrast Ratio: 800:1(typ)
Optical Response Time: 5 ms(typ, on/off)
Support Color: 16.7M colors (RGB 6-bit data + HiFRC data) |
Order Information
IBT6170 - 15" Panel PC w/TFT Panel, Touch Screen, 6PCIS B/P, 300W ATX P/S
IBT6170/840 - 15" Panel PC w/TFT Panel, Touch Screen, 6PCIS B/P 300W ATX P/S
and IB840 SBC [Intel 865G - Full Lenght PICMG SBC Socket 478 Intel Pentium 4 with MicroAGP] Single Lan
IBT6170/840F - 15" Panel PC w/TFT Panel, Touch Screen, 6PCIS B/P 300W ATX P/S
and IB840F SBC [Intel 865G - Full Lenght PICMG SBC Socket 478 Intel Pentium 4 with MicroAGP] Dual Lan
Accessory Options:
Metal Stand, Processor MainBoard, CPU, Memory Module, HDD, FDD, slim CD-ROM
|
|
|
|
|
|
