IBT899/M812 - 15" Panel PC TFT LCD Color display Industrial
Feature
15" panel display
Steel Assembly,
Front Black,
CE,FCC,UL,CSA, CCC and BSMI
| IBT899/MI812 SPECIFICATIONS |
| Processing |
|
| Mainboard |
MB899F |
| System Speed |
Intel© Pentium M Mobile Processor 1.6GHz, expandable up to 2.26GHz |
| CPU FSB |
533MHz/667MHz FSB |
| Memory |
1 GB system memory (DDR2 expandable to Max 4GB) |
| Storage |
2.5in.HDD, 160GB |
| Optical disk* |
Slim DVD-RW Optical Drive |
| Chipset |
Intel© 945GM Chipset, GMCH: 82945GM 1257-pin FCBGA ICH7M: 82801GBM 609-pin Mbga FWH |
| BIOS |
Award BIOS, support ACPI Function |
| Interfaces |
|
| VGA |
945GM built-in, supports LVDS / LCD |
| LAN |
Two Ethernet, One Gbe and One 100Base-T LAN port |
| USB |
ICH7M built-in USB 2.0 host controller, supports 4 ports |
| Serial ATA Ports |
ICH7M built-in SATA controller, supports 1 ports |
| Audio |
ICH7M Built-in Audio controller + AC97 Codec ALC 655 5.1 channels (Line-out, Line-in, Mic.) |
| LPC I/O |
W83627EHF: COM1, COM2 (RS232), IrDA x1 & Hardware monitor (3 thermal inputs, 4 voltage monitor inputs, 1 Fan Headers) |
| Thermal Solution |
4cm ball bearing cooling fan x 2 |
| Keyboard/Mouse |
Supports PS/2 Keyboard/Mouse |
| Expansion Slots |
Mini PCI slot |
| Environnement |
|
| Operation Temperature |
0 – 50°C |
| Storage Temperature |
-20C – 60°C |
| Relative Humidity |
10% -- 90% @50C, non-condensing |
| |
|
| Construction |
Aluminum front panel / metal chassis |
| Color |
Front Bezel Black |
| Power Input |
90 – 240V AC (auto-Switch) |
| Power Saving |
VESA DPMS standard (4 mode) Power |
| Consumption |
18 watt (max.), < 3 watt (stand by mode) |
| |
|
| Certifications |
CSA,FCC,UL,CE,CCC and BSMI |
| Dimensions |

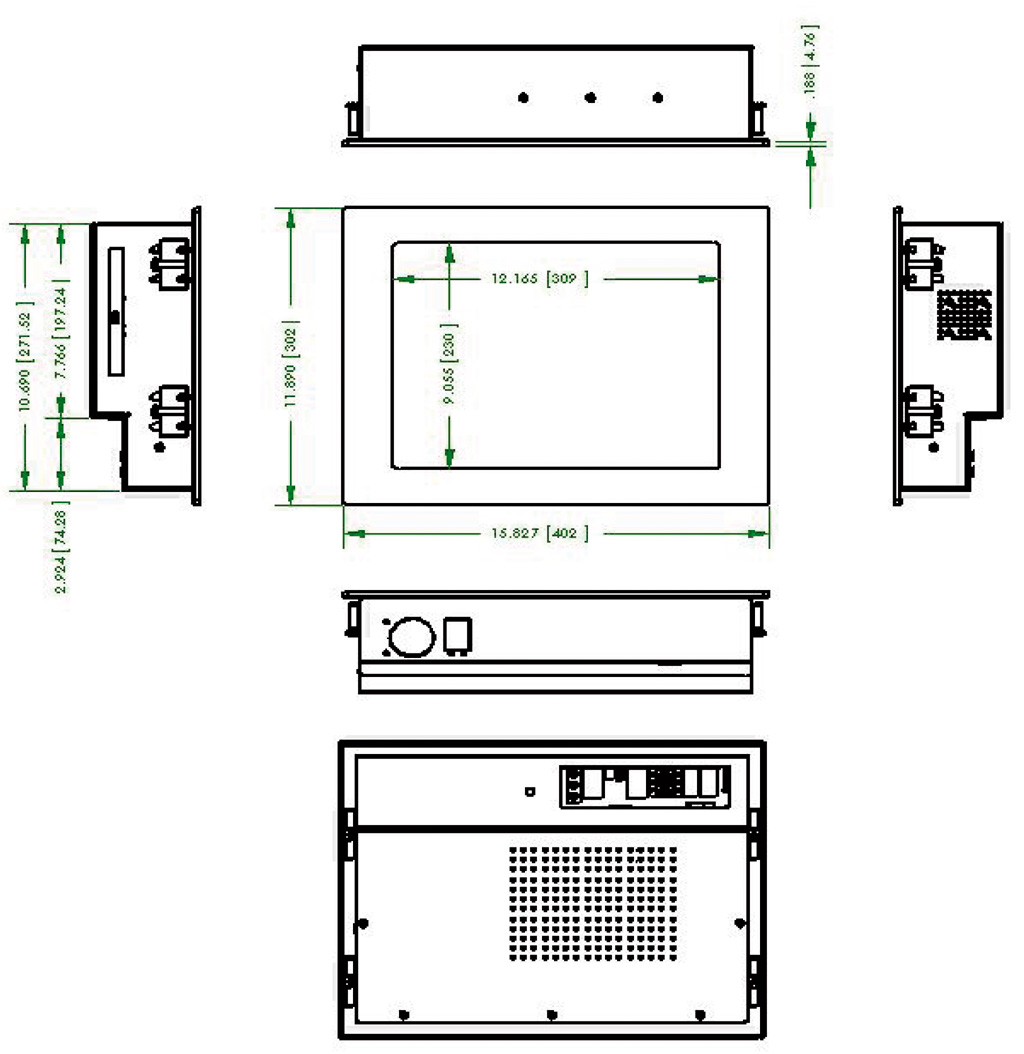

402mm x 302mm x 80mm (15 x 11 x 3" ) |
| |
* Optionnal componants |
|
|
|
|
|
