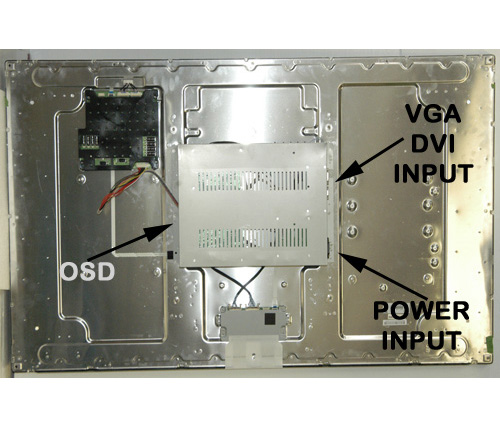

OFHB55 - 55 Inch High Brightness Display
| OFHB55 SPECIFICATIONS |
| Panel Display |
| Display Size |
55.0 inches |
| Resolution |
HD Resolution 1920 x 1080 Full HD |
| Nits |
1000 cd/m2 |
| Contrast Ratio |
4000:1 |
Viewing Angle
(up/down),(right/left) |
88/88/88/88deg |
| Operating Temperature |
0 to +50deg C |
| Backlight |
WLED, 120Hz |
| Panel Mode |
Transmissive, AMVA3, Normally Black |
| Interface |
LVDS (4 ch, 10-bit) |
| Lead Free / Rohs |
|
| |
| Display Area |
1209.6 x 680 mm (W×H) |
| Outline Dimension |
1255.6 x 726.4 mm (W×H) |
| Display Colors |
1.07B (8-bit + Hi-FRC) |
| Number of Pixels |
1920 x 1080 Pixel |
| Pixel Pitch |
0.1615×0.1615 mm (W×H) |
| Pixel Arrangement |
RGB vertical stripe |
| Display Mode |
Normally Black |
| Panel Type |
a-Si TFT-LCD |
| Surface Treatment |
AG, Haze=11%, 3H |
| |
| Video Inputs |
DVI-D, VGA |
| Power Input |
110 volts A/C 60/120Hz Switchable |
Order Information
MON-OFHB55 - 55 inch High Brightness Monitor Open Frame
|
|
|
|
|
