DS4600 ALL-IN-ONE Digital Signage for All Seasons

Features

Digital Signage for all seasons and weathers
1. Outdoor Super Bright 46 Inch HD-LCD Screen, Sun readable
2. Auto Brightness control sensors
3. All-weather IP65 steel enclosure
4. Vandal Resistant Screen & housing
5. Multi Smart fan for airflow, keeps system unit cool and dry in any weather
6. Internal thermostatically-controlled heater and cooler to protects in every weather conditions
7. Hardware monitor and control for the thermo controler.
8. Operating Temperature -40°C To 50°C
9. Remote Reboot, Temp.& Humidity Monitoring, Shock Sensor available (optional)
10. Customs Wireless and Computer Processors

Specifications

Units Specifications
Classification IP65
Dimension 1056 x 610 x 249 mm (41.6 x 24 x 9.81 ")
Front glass type Strengthen 6mm AR glass
Weight 95Kg / 210 Lbs
Environnement
Power Input 110 V or 220 V
Operating Temperature -40 to + 95F (Direct Sunlight) / 122F (Under Shaded Area)
Humiduty 10% to 90% non condensing
Storage Temperature 0 to 50°C
LCD Panel
Viewable Size Image 46" Wide
Active Display Area ( mm ) 1018.353 x 572.544 mm (W x H)
Pixel Pitch ( mm ) 0.2485(H) x 0.7455(V) mm
Pixels HxV 1366 x 768 (pixels)
Brightness 1500 nits (Typ)
Display Color 16.77M colors ( 6 bits + Hi-FRC )
Touchscreen analog 5 Wire Resistive
Brightness (cd/m2) 3000:1
Viewing Angle Horizontal: 89°/89° ( L/R )
Vertical 89°/89° ( U/D )
Response time 8 ms (Typ)
Power source AC 100~240 V, Universal,±10%
Power Consumption 20W typical, normal operation
Power Management VESA DPMS Compliant
Plug Play VESA DDC 1/2B
Lamp life / CCFL Life Time 60,000 hours
Video inputs VGA; S-Video; Digital
Advanced Feature Auto Brightness Control

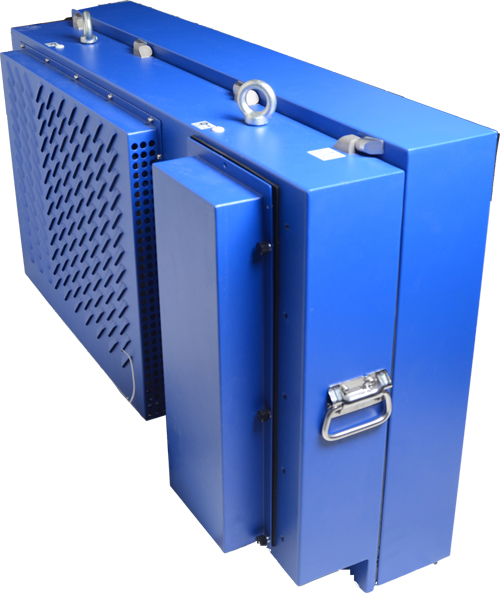

Back view
222

Processors
Digital Signage DS4600 is good for Outdoor or Indoor – Super Bright 46 inch LCD Screen – All-weather IP65 steel enclosure protection – Smart airflow system keeps unit cool and dry in temperatures up to 122 degrees F. – Hardware remote controlled and smart Internal thermostatically-controlled heater and cooler to protects in temperatures as low as -24 degrees F.

Mainboards:

Motherboard specs (all models)

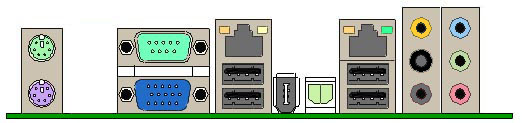

MI910: System Board and Processing
Mainboard name MI910
Processor Intel Mobile Core2 Duo 1.66GHz
System Chipset Intel 96445GME + ICH8M
System Memory 2.0GB ( Default ) good up to 4 GB
BIOS Award 8Mbit
Ethernet Dual GbE, Intel and Marvell Giga Lan Ethernet
Audio ICH8M integrated audio with AC97 Codec
Serial 2 x RS-232 ( COM2 can be configurable to RS-422/485 )
USB 6 x USB 2.0
KB / Mouse Connector 2 x PS/2
MI945: System Board and Processing
Mainboard name MI945PR (Intel Socket P, 667/800/1066 FSB, Core2Duo )
Processor Intel Mobile Core2Duo 1.6Ghz/2M cache FSB 667 Mhz Processor
System Chipset Intel GM45 + ICH9M
Video graphic processor Intel GMA X4500
System Memory SO-DIMM DDR2 module x2, 4.0GB
BIOS Award 8Mbit
Ethernet Intel 82567LM and Marvell 88E8053 Gigabits Lan Ethernet
Audio ICH9M integrated audio HD 7.1 with ALC888
Serial 4 x RS-232 ( COM2 can be configurable to RS-422/485 )
USB 6 x USB 2.0
KB / Mouse Connector 2 x PS/2
MI812: System Board and Processing
Mainboard name MI812
Processor Intel Atom N270 Single core 1.60Ghz/512K cache
FSB 533 Mhz Processor with Hyper-Threading and Intel Speedstep™ Technology
System Chipset Intel 945GSE + ICH7M
System Memory DDR2 DIMM module x 2 , max. 2GB ( Default 2.0GB )
BIOS Award 8Mbit
Ethernet Intel 10/100 ICH7M 82562 Lan and
Intel 82574L 10/100/1000 Giga Lan Ethernet
Audio ICH7M integrated audio with AC97 Codec
Serial 2 x RS-232 ( COM2 can be configurable to RS-422/485 )
USB 8 x USB 2.0
KB / Mouse Connector 2 x PS/2

Options
Options and Accessories
WallMount Stand Tilting angle 0 To 45 deg.
Storage (selectable) 2.5 inch 40GB / 80GB / 160GB / 320GB and up or SSD 1G / 2G / 4G / 8G / 16G / 32G and up or Compact flash 2.0GB / 4.0GB / 8.0GB / 16GB and up
OS (selectable) Windows 7 / Windows XP / Embedded XP / Embedded Standard XP / Linux InfoJection

Ordering Information

All units come with Climatisation control and Sensors

  • DS4600 : 46" Wide wth Intel Core2duo 1.83GHz / 2 GB / 160 GB (MI910)
  • DS4645 : 46" Wide wth Intel Core2duo 2.2GHz / 4 GB / 250 GB (MI945)
  • DS4610 : 46" Wide wth Intel Atom 1.6GHz / 2 GB / 160 GB (MB8100)
  • © Copyright IBT Technologies Inc., 2010 - All Rights Reserved * Information are subject to change without notice, Engineering specs may differ slightly.
    * Parts number may differ from ordering information.
