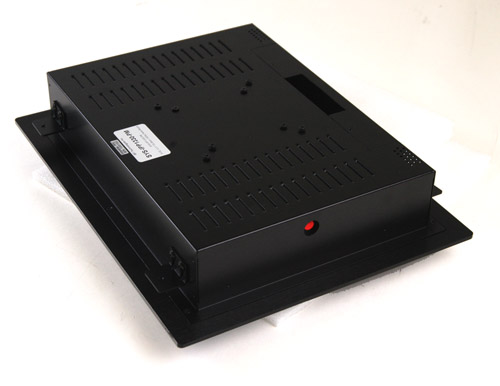

IPP1330 - Industrial WallMount 13.3"W Panel PC
Feature
13.3" Panel PC, with touch screen.
Resolution up to 1280x768, 250nits, 500:1
Resistive Touch Screen
Fanless system
I/O ports: PS2 KB/Mouse, 100 LAN x1, COM port x3, USB port x6, PCI Slot x1
2.5" HD space
DOM (Disk on Memory module) (option)
| ipp1300 SPECIFICATIONS |
| Processing |
|
| Processor |
ATOM N270 1.6GHz |
| Mainboard |
MI812 |
| Memory |
2GB |
| Storage |
DOM (16~32G-SSD or CF) (option) |
| Storage |
80GB-HDD 2.5 |
| I/O |
1xSerial 232(DB9M),1xSerial 422
LPT(DB25F), 8xUSB2.0
KB/MOU(PS2), Gigabit Ethernet |
| Motherboard specs |
|
| Mainboard name |
MI812 (Adapted) |
| Processor |
Intel Atom N270 Single core 1.60Ghz/512K cache FSB 533 Mhz Processor with Hyper-Threading and Intel Speedstep Technology |
| System Chipset |
Intel 945GSE + ICH7M |
| System Memory |
DDR2 DIMM module x 2 , max. 2GB ( Default 2.0GB ) |
| BIOS |
Award 8Mbit |
| Ethernet |
Intel 10/100 ICH7M 82562 Lan and
Intel 82574L 10/100/1000 Giga Lan Ethernet |
| Audio |
ICH7M integrated audio with AC97 Codec |
| Serial |
2 x RS-232 ( COM2 can be configurable to RS-422/485 ) |
| USB |
8 x USB 2.0 |
| KB / Mouse |
2 x PS/2 |
| Display Screen |
|
| Type |
TFT LCD 13.3" BackLight |
| Visible Screen |
11 x 7" |
| Resolution |
1280 x 800 (native)(WXGA) 16:9 |
| Dot Resolution |
0.2235 X 0.2235 |
| Brightness |
300nits, 500:1 LED |
| TouchScreen |
|
| Touchscreen |
analog 5 Wire Resistive |
| Film Type |
Polished, Anti-glare or Anti-reflective |
| Response time |
35ms max, Edge compensation |
| Input Method |
Finger, pen, or gloved hand |
| Touch Durability |
35 millions times single location |
| Surface Scratching |
1 Million times (250gf 60mm/s) |
| Surface Pitting |
35 Million times (250gf 2 times/s) |
| Light Transmission |
Standard 80% |
| Operating Systems: |
MS-DOS, Windows, Linux etc |
| Chassis |
|
| Unit |
16 x 12 x 4 (W H D) inch |
| Power source |
|
| Internal |
12V DC to DC (* Can be used in DC power environnement and applications). |
| External |
from unit AC to DC 90 Watts power adaptor ( for 110~240 volts AC environnement). |
| Operating |
|
| Operation Environment |
-20 ~ 60°C |
| Storage Temperature |
-30 ~ 70°C |
| Humidity |
60C, 90% RH 280 HR |
| Weight Informations |
9.7 < LB in Ready to ship / Packed (1 box)
6.4 < LB Main units |

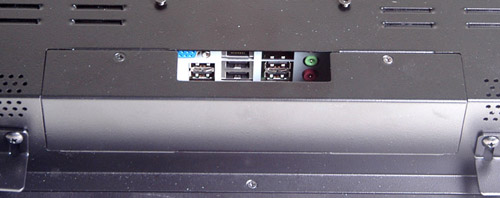

All wires and connectors are hidden under a plate and back.
 |
|
 |
| Options and Accessories |
| Storage (selectable) |
2.5 inch 40GB / 80GB / 160GB / 320GB and up
or SSD 1G / 2G / 4G / 8G / 16G / 32G and up
or Compact flash 2.0GB / 4.0GB / 8.0GB / 16GB and up |
| Operating System (Opt) |
Windows XP Professional / Embedded / WePOS/POS2009 Ready |
| WallMount front bazel |
Fix |
Stands options
Desktop: (optionnal)
Weight: 6.6lb (2Kilo)
Height: 12 inch
|
|
Order Information
IPP1330WM//812 - 13" All-in-one Industrial WallMount Panel PC with touch screen and (MI812) CPU,Memory,Storage
IPPC-STAND13 - VESA Stand for IPPC13
Weight Informations:
9.7 < LB in Ready to ship / Packed (1 box)
6.4 < LB Main units with stand
|
|
|
|
|
| © Copyright IBT Technologies Inc., 2014 - All Rights Reserved |
* Information are subject to change without notice, Engineering specs may differ slightly.
* Parts number may differ from ordering information. |
|
