| IPPC4200 SPECIFICATIONS |
| |
IPP42-MC2D |
IPPC42-Atom |
| System Board and Processing |
|
| Mainboard |
MB899 |
MI812 |
| Processor |
Intel Mobile Core 2 duo 1.6Ghz/2M cache FSB/ 533 Mhz Processor |
Intel Atom N270 Single core 1.60Ghz/512K cache FSB 533 Mhz Processor with Hyper-Threading and Intel Speedstep® Technology |
| Memory |
DDR2 DIMM module x 2 , max. 4.0GB
( Default 1.0GB ) |
DDR2 DIMM module x 2 , max. 2GB ( Default 2.0GB ) |
| System Chipset |
Intel 945GME + ICH7M |
Intel 945GSE + ICH7M |
| Ethernet |
Intel 8256210/100 Mbits Lan and Marvell 88E8053 10/100/1000 Giga Lan Ethernet |
Intel 10/100 ICH7M 82562 Lan and Intel 82574L 10/100/1000 Giga Lan Ethernet |
| Audio |
ICH7M integrated audio with AC97 Codec |
ICH7M integrated audio with AC97 Codec |
| Serial |
2 x RS-232 ( COM2 can be configurable to RS-422/485 ) |
2 x RS-232 ( COM2 can be configurable to RS-422/485 ) |
| USB |
6 x USB 2.0 |
8 x USB 2.0 |
| KB / Mouse Connector |
2 x PS/2 |
2 x PS/2 |
| Video |
Intel™ 945GME integrated VGA for CRT/TV out Supports DVMT 3.0 for memory allocation |
Intel® 945GSE integrated Graphics Media Accelerator (GMA 950) supports CRT |
| BIOS |
Award 8Mbit |
Award 8Mbit |
| Connectors |
 |
 |
| Display Screen |
|
|
| Type |

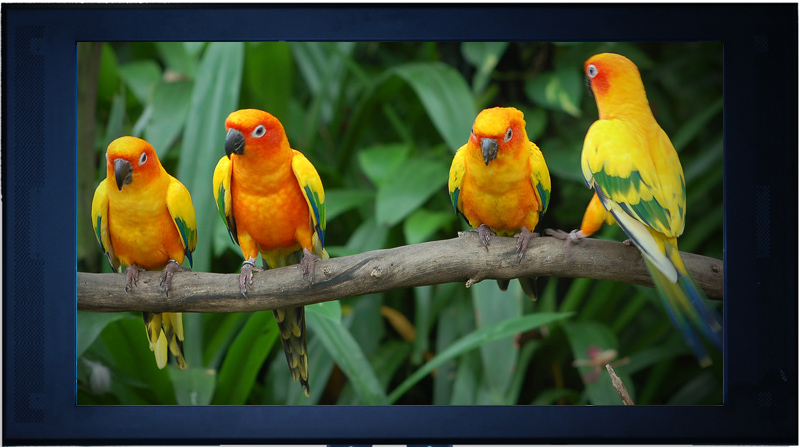

42 "W Industrial grade TFT WXGA LCD Solution |
| Visible Screen
|
11 x 7" |
| Resolution |
1280 x 800 (native)(WXGA) 16:9 |
| Dot Resolution |
0.2235 X 0.2235 |
| Brightness |
300nits, 500:1 LED |
| TouchScreen |
|
|
| TouchScreen |
42"W Industrial grade TFT WXGA LCD Solution |
| Front Panel |
Aluminum front panel , metal housing & stand meet industrial grade |
| Tilting angle |
Tilting angle 10°~90° Countertop Stand ( optional ) |
| Size |
1153 mm ( W ) x 640 mm ( L ) x 120 mm ( H ) ( with I/R touch installed ) |
| Power |
DC12V single power input |
| LCD Panel |
|
| Viewable Size Image |
42" Wide |
| Active Display Area |
930.24 (H) x 523.26 (V) mm |
| Pixel Pitch |
0.3 mm |
| Pixels HxV |
1920 (H) x 1080 (V) pixels |
| Contrast Ratio |
2500:1 (typical.) |
| Display Color |
16.77M colors ( 6 bits + Hi-FRC ) |
| Brightness |
500cd/m2 (typical.) |
| Viewing Angle |
Horizontal: 89°/89° ( L/R ) , Vertical 89°/89° ( U/D ) |
| Resolution |
1920x1080@60Hz, 75Hz |
| Power source |
AC 90~240 V, Universal,±10% |
| Power Consumption |
175W typical, normal operation |
| Power Management |
VESA DPMS Compliant |
| Plug Play |
VESA DDC 1/2B |
| Lamp life |
60,000 hours |
| Environnement |
|
| Power Adapter |
90V ~ 240V AC IN |
| Temperature |
Operating : 0 °C to 60 °C |
| Humiduty |
10% to 90% non condensing |
| Housing |
Metal housing meet industrial grade |
| Weight |
100 LB (46 Kilo) |
| Mounting |
Dual Legs Stand |
| Dimension |
1153 mm ( W ) x 640 mm ( L ) x 120 mm ( H )
( with I/R touch installed ) |
| Options and Accessories: |
| Card Reader |
MSR track 1,2 |
| Stand |
Tilting angle 10 deg. To 90 deg. Countertop Stand |
| Storage (selectable) |
2.5 inch 40GB / 80GB / 160GB / 320GB and up or SSD 1G / 2G / 4G / 8G / 16G / 32G and up or Compact flash 2.0GB / 4.0GB / 8.0GB / 16GB and up |
| OS Optional |
Windows XP Professional / Embedded / WePOS/POS2009 Ready |
