RTS7-C - 7" Capacitive Touch Screen Industrial Panel PC
 Feature

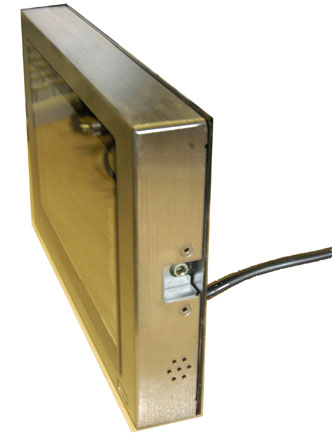

Brush Aluminum case
Slick and Thin look
VESA Mount
High Brightness TFT Industrial

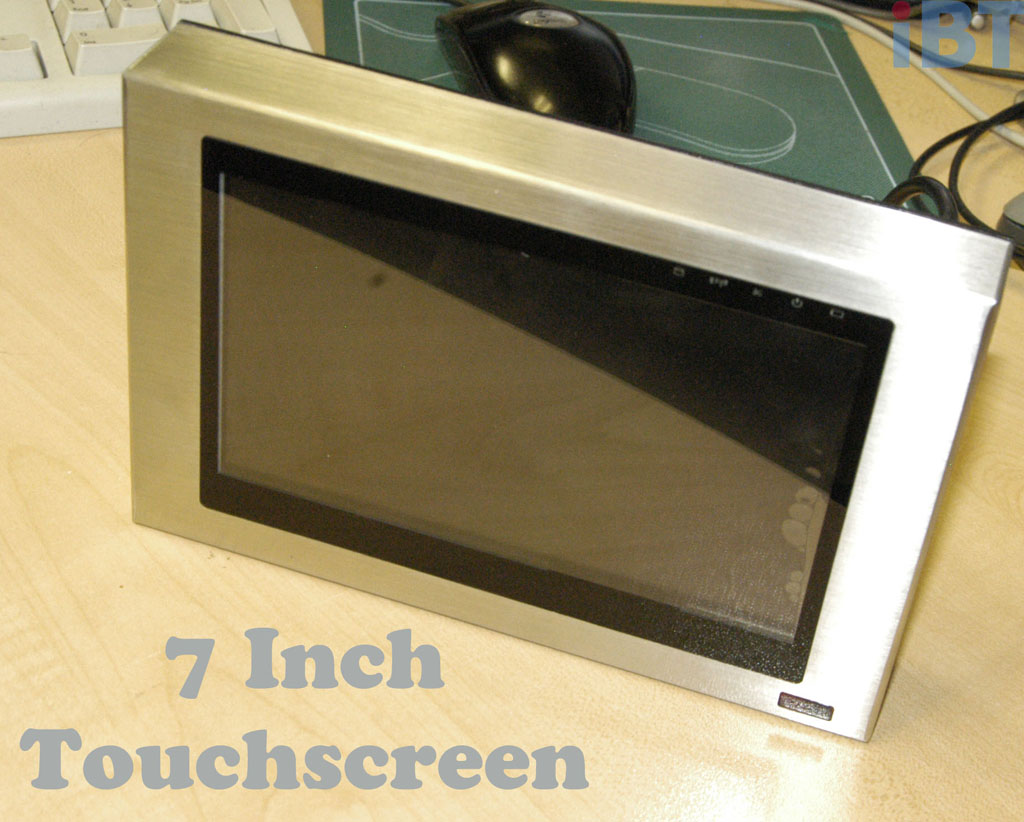

7Inch color panel display
Capacitive TouchScreen
Multi-Touch Capacitive Sensor
I/R motion sensor
Intel Atom Fast Processor with low voltage
| RTS7 SPECIFICATIONS |
| System Board and Processing |
| Processor |
Intel® Pineview-M Microprocessor
Fanless, Atom N450SC 1.66GHz 512k/L2 |
| Memory |
One SO-DIMM socket
supports up to 2048MB,
Single Channel DDR2 667Mhz |
| System Chipset |
Intel® Luna-Pier platform, ICH8 |
| BIOS |
Award 8Mbit |
| Ethernet |
10/100/1000 Realtek 8111C |
| Video |
Intel® Integrated Graphics Controller (GMA3150),
Luna Pier supports DirectX 9 Graphic (200MHz),
OpenGL 1.4 (LVDS 18 bits) |
| Audio |
Realtek ALC662 AC97 Audio Codec 5.1,
Line-out with 4ohm amplifier 2watts |
| Storage |
Type I/II CF connector (x1) |
| Ethernet |
One Realtek 8103, GbE Lan controler |
| Serial |
N/A |
| USB |
1x external, 2 Internal |
| KB / Mouse |
USB |
| Display |
|
| Screen Size |
7 Inch TFT LCD
|
| Display Format |
R x 640, G, B x 480 |
| Pixel Pitch |
0.1905(H) x 0.1905(V) m/m |
| Brightness |
400 cd/m² |
| Contrast Ratio |
400:1 |
| MTBF |
15,000 hrs |
| Touch Screen |
|
| |
7" resistive touch screen |
| |
|
| Digital I/O |
6 IN/OUT over ICH8M GPIO |
| Expansion |
Mini PCIe x1 half size, CF Socket
|
| Watchdog Timer |
Generates system reset; 256 levels |
| Power In |
DC-IN 12Volts |
| Thermal System |
4cm ball bearing cooling fan x 1 |
| Front Panel Chassie Protection |
IP65, IR motion sensor |
| Temperature |
0~+45°C (operating); -20~+70°C (storage) |
|
|
Order Information
RTS7-C -7" Panel PC w/TFT Panel, Capacitive Touch Screen,, 12v /40W AC-DC Adapter
IB877 - Intel® AtomTM N450 +ICH8M Luna-Pier Platform Mainboard
|
|
|
|
|
